Silica Insulation Brick

Silica Insulation Brick

Silica Insulation Brick


Silica insulation brick refers to a kind of refractory products made from silica as the main material and with SiO2 content not less than 91%.The main mineral composition of silica insulation brick is phosphorite and cristobalite.

Email: [email protected]

WhatsApp/Phone Number: +8613592411271

Product detail

Silica Insulation Brick

Composition:SiO2

Application:Heat-insulating layer of various of high temperature furnaces

Capacity:800 tons per month

Color:White

Size:As your requirements

Raw Material:Quartz sand

Package:Export wooden pallets

Product Introduction

Silica insulation brick refers to a kind of refractory products made from silica as the main material and with SiO2 content not less than 91%.The main mineral composition of silica insulation brick is phosphorite and cristobalite.

Features

1. High refractoriness under load.

2. Energy-saving.

3. Less heat radiation loss.

4. Low thermal conductivity.

Application

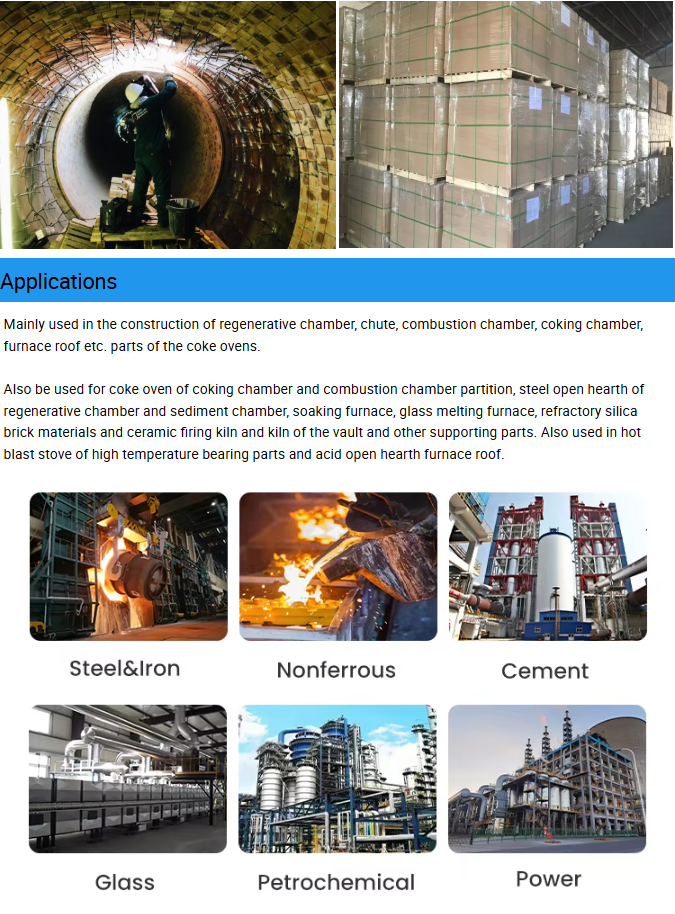

Silica insulation brick has excellent fire resistance, with only small residual expansion, and good thermal stability. They are suitable for industrial furnaces such as coke ovens, hot blast furnaces, glass furnaces, and carbon furnaces.

Product Parameters

Item Silica Insulation Brick
GGR-1.0 GGR-1.10 GGR-1.15 GGR-1.20
SiO2(%) >=91
Bulk Density (g/cm3) 1.0 1.10 1.15 1.20
Cold Crushing Strength (MPa) >=2 >=3 >=5 >=5
Refractoriness Under Load  (0.2MPa)(℃) 1400 1420 1500 1520
Permanent Linear Change (1550℃*2h)(%) 0.5 0.5
Permanent Linear Change (1450℃*2h)(%) 0.5 0.5
Coefficient of Thermal Conductivity,Average Temperature 350+10℃ w/(m·k) 0.55 0.60 0.65 0.70
