Fused Cast AZS Block

Fused Cast AZS Block

Fused Cast AZS Block

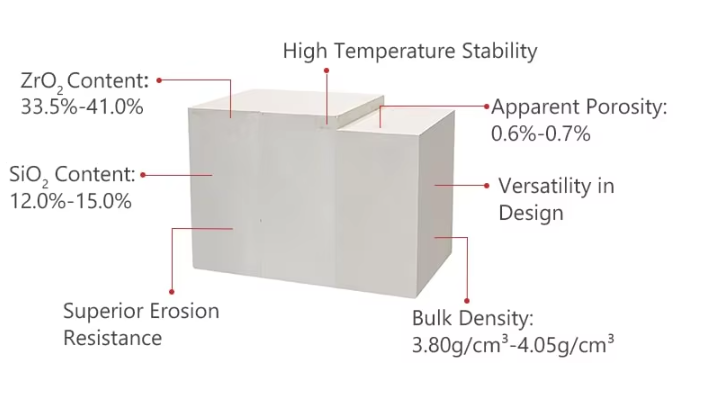

AZS block is also called fused zirconia corundum brick which contains Al2O3-ZrO2-SiO2. The fused cast AZS block is made of pure alumina powder and zircon sand (consisting of 65% zirconia and 34% SiO2).

Email: [email protected]

WhatsApp/Phone Number: +8613592411271

Product detail

Fused Cast AZS Block

Main Composition:ZrO2 + Al2O3

Application:Glass kiln

Capacity:300 tons per month

Color:White

Size:As your requirements

Product Introduction

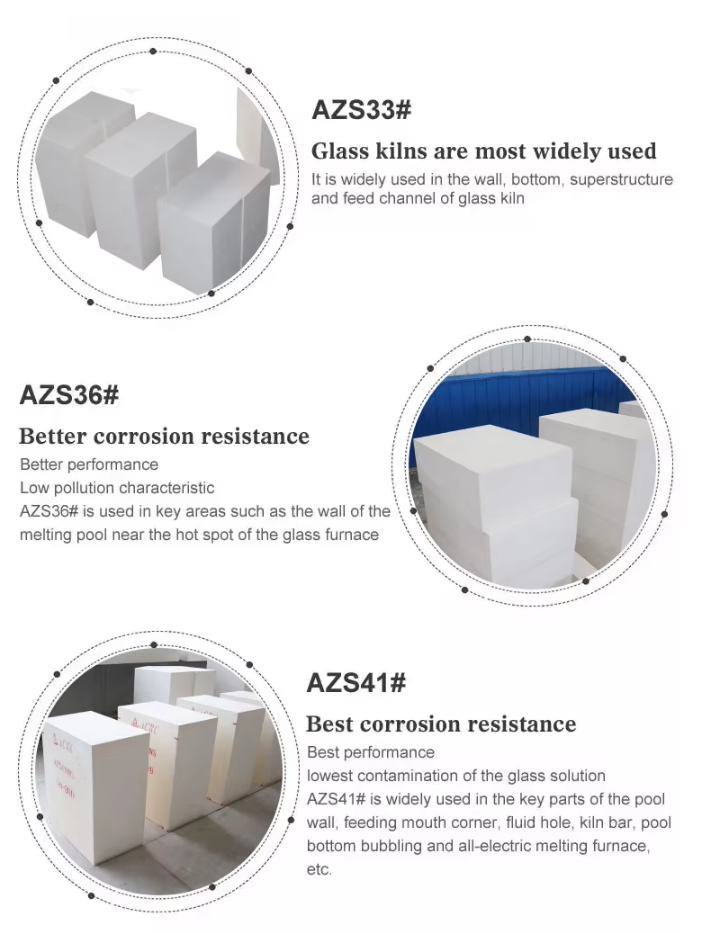

AZS block is also called fused zirconia corundum brick which contains Al2O3-ZrO2-SiO2. The fused cast AZS block is made of pure alumina powder and zircon sand (consisting of 65% zirconia and 34% SiO2). After the alumina powder and zircon sand are melted in an electric furnace, they are cast into various molds and cooled down to become white solids. Since the content of zirconia is between 33% and 41%, the fused cast AZS blocks are pided into three types: AZS-33#, AZS-36# and AZS-41#.

Features

1.Compact micro-structure.

2.Good erosion resistance.

3.Good thermal shock resistance.

4.High compression resistance.

Application

It is mainly used in glass industry.

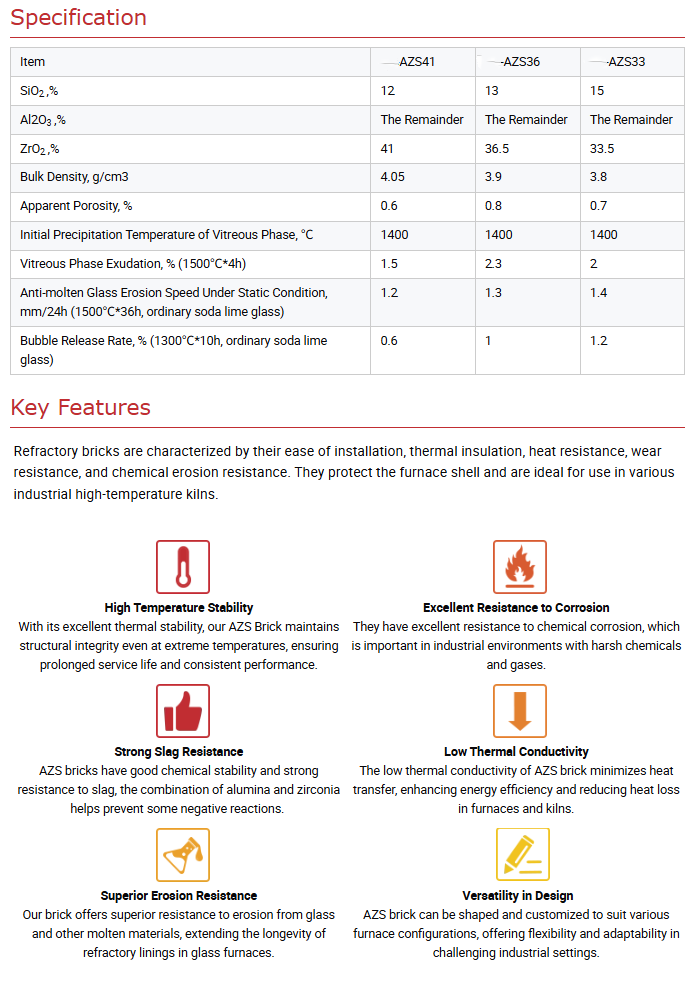

Product Parameters

Item CN-AZS33 CN-AZS36 CN-AZS41
Chemical Composition Al2O3 >=50.00 >=49.00 >=45.00
ZrO2 >=32.50 >=35.50 >=40.50
SiO2 <=15.50 <=13.50 <=13.00
Na2O+K2O <=1.30 <=1.35 <=1.30
Bulk density(g/cm3) >=3.70 >=3.75 >=3.88
Apparent Porosity(%) <=1.4 <=1.2 <=1.2
Cold Crushing Strength(Mpa) >=300 >=300 >=300
Exudation Temperature of Glass Phase >=1400 >=1400 >=1410
Bubble Separation Ratio(1300℃&times;10h) <=1.5 <=1.4 <=1.0
Apparent Density (g/cm3) PT(RN RC N) >=3.45 >=3.50 >=3.70
ZWS(RR EVF EC ENC) >=3.60 >=3.70 >=3.90
WS( RT VF EPIC FVP DCL) >=3.70 >=3.80 >=4.00
