Green Silicon Carbide

Green Silicon Carbide

Green Silicon Carbide


Silicon carbide is made by high temperature smelting of raw materials such as quartz sand, petroleum coke (or coal coke), wood chips (salt is needed to produce green silicon carbide) in a resistance furnace.

Email: marketing@ht-refractory.com

WhatsApp/Phone Number: +8613592411271

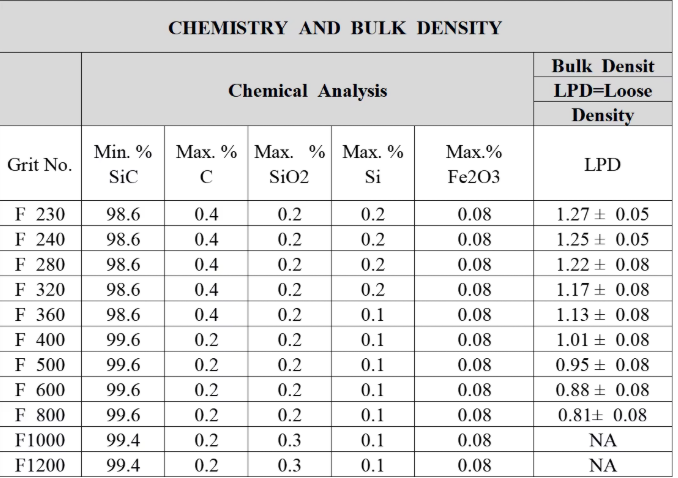

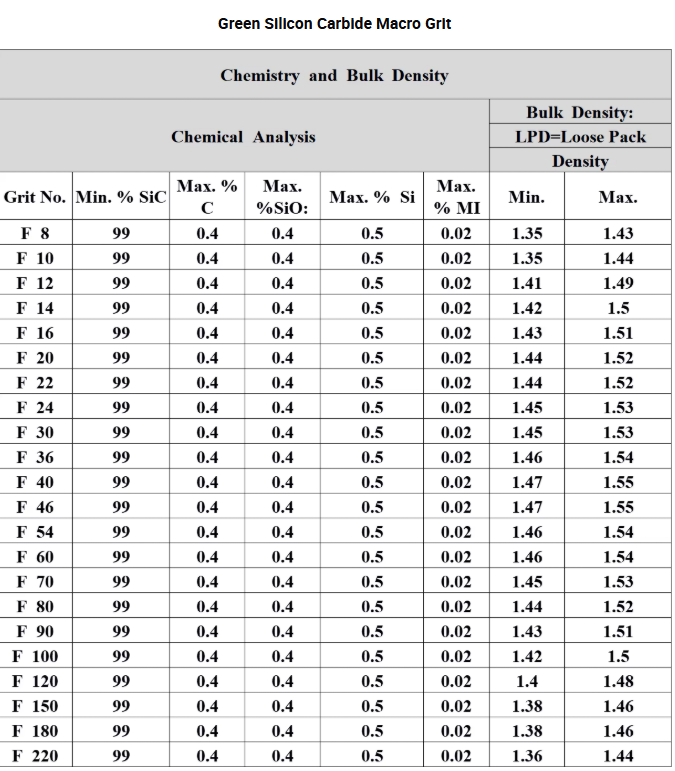

Product Parameters

Product detail

Green Silicon Carbide

Main Composition:SiC

Color:Black/Green

Capacity:1000 tons per month

Application:Size : As your requirements

Package:Export ton bag

Product Introduction

Silicon carbide is made by high temperature smelting of raw materials such as quartz sand, petroleum coke (or coal coke), wood chips (salt is needed to produce green silicon carbide) in a resistance furnace. At present, silicon carbide is pided into black silicon carbide and green silicon carbide, both of which are hexagonal crystals, with a specific gravity of 3.20-3.25 and a microhardness of 2840-3320kg/mm2.



Product Advantages

Features

1.Stable chemical properties.

2.High thermal conductivity.

3.Small thermal expansion coefficient.

4.Good wear resistance.

Product Applications

Application:

1、Cutting and grinding ofthe solar wafers, semiconductor wafers, and quartz chips.

2、Polishing of crystal and pure grain iron.

3、Precision polishing and sandblasting of ceramics and special steel.

4、Cutting, free grinding and polishing of fixed and coated abrasive tools.

5、Grinding the non-metallic materials such as glass, stone, agate and high-grade jewelleryjade.

6、Manufacturing the advanced refractory materials, engineering ceramics, heating elements and thermal energy elements, etc.

Packaging
