High-Performance Silica Refractory Brick-Henan Hongtai Kiln Refractory CO.,LTD.

High-Performance Silica Refractory Brick

Silica brickApplication fields of silica bricks is a typical acidic refractory material with silica as the main component. It boasts high refracto ...

Email: [email protected]

WhatsApp/Phone Number: +8613592411271

Product detail

High-Performance Silica Refractory Brick

Product Parameters

Silica brickApplication fields of silica bricks is a typical acidic refractory material with silica as the main component. It boasts high refractoriness, excellent volume stability and superior resistance to acidic slag erosion. Widely used in coking, glassmaking, metallurgy and other high-temperature furnaces, it works reliably for long-term service under working temperatures ranging from 1400℃ to 1650℃.

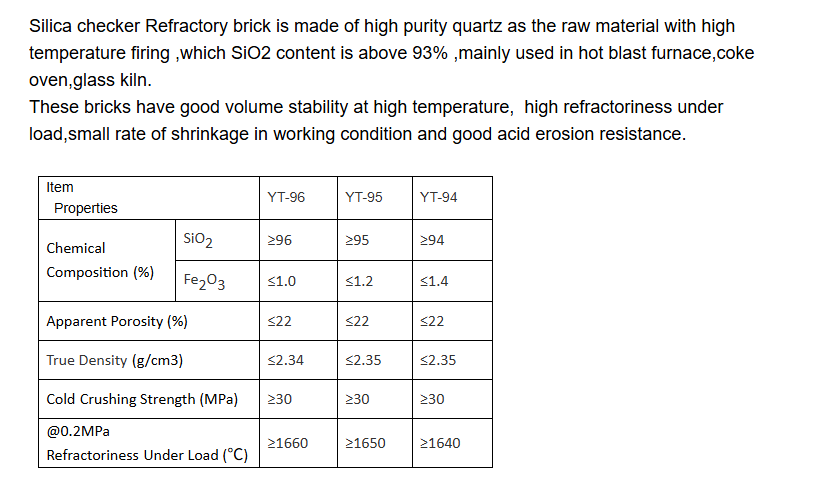

Chemical Composition

Premium silica bricks have a silica content of 94% to 96% and minimal impurities, ensuring outstanding high-temperature performance. Its main mineral phases are tridymite and cristobalite, with a small amount of residual quartz. The stable crystal structure effectively prevents deformation and spalling during long-duration high-temperature operation.

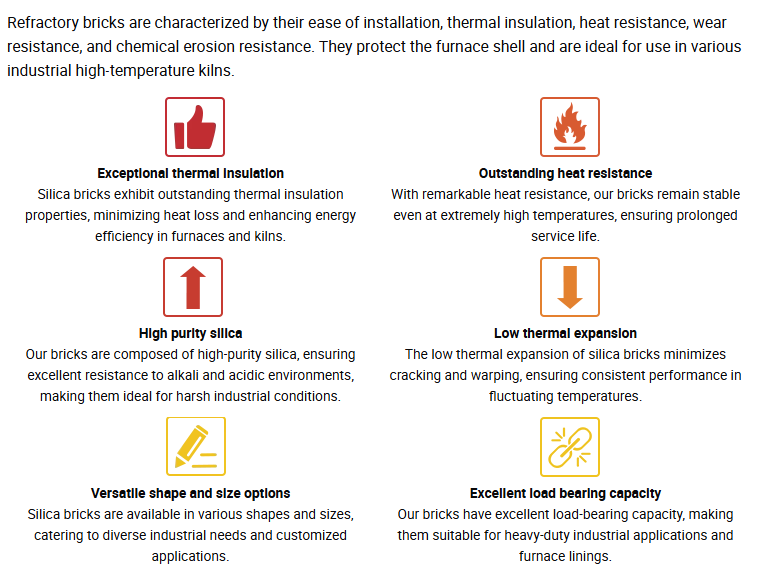

Key Advantages

1. High Load Softening Temperature

It retains structural stability under load at 1640℃-1680℃, ideal for load-bearing parts such as furnace tops, arches and partition walls.

2.Superb Acid Corrosion Resistance

It can resist erosion from acidic gases and slags, perfectly matching the service conditions of coke ovens and glass furnaces.

3.Stable Volume & Good Air Tightness

Moderate thermal expansion at high temperatures automatically seals gaps between bricks, improving furnace air tightness and reducing heat loss.

4. Low Creep & Long Service Life

With outstanding high-temperature structural strength, the brick resists deformation and collapse, greatly extending the service life of industrial furnaces.

Product Classification

General Silica Bricks: For regular areas of hot blast stoves and heating furnaces.
Coke Oven Silica Bricks: Featuring high crystal transformation rate and strong compression & wear resistance, designed for carbonization and combustion chambers.
Lightweight Silica Insulating Bricks: Used for high-temperature thermal insulation to save energy.

Main Applications

Coking industry: Coke oven tops, flues and regenerators

2. Glass industry: Furnace breast walls, crowns and feed channels

3. Metallurgical industry: Blast furnace hot blast stoves and reheating furnaces

4. Building materials industry: High-temperature lime kilns, ceramic kilns and other thermal equipment

Usage Guidelines

While silica bricks deliver excellent high-temperature performance, they have poor thermal shock resistance below 600℃. During furnace drying, heat the furnace slowly and evenly to avoid cracks caused by sharp temperature fluctuations. For masonry, please use dedicated silica refractory mortar to guarantee overall structural stability.

Summary

As an essential acidic refractory for industrial high-temperature furnaces, silica bricks feature stable high-temperature strength and strong anti-corrosion ability. They ensure steady furnace operation, cut maintenance costs and boost overall production efficiency.
